ZEBEX Z-3191LE

เครื่องอ่านบาร์โค้ด ZEBEX Z-3191LE

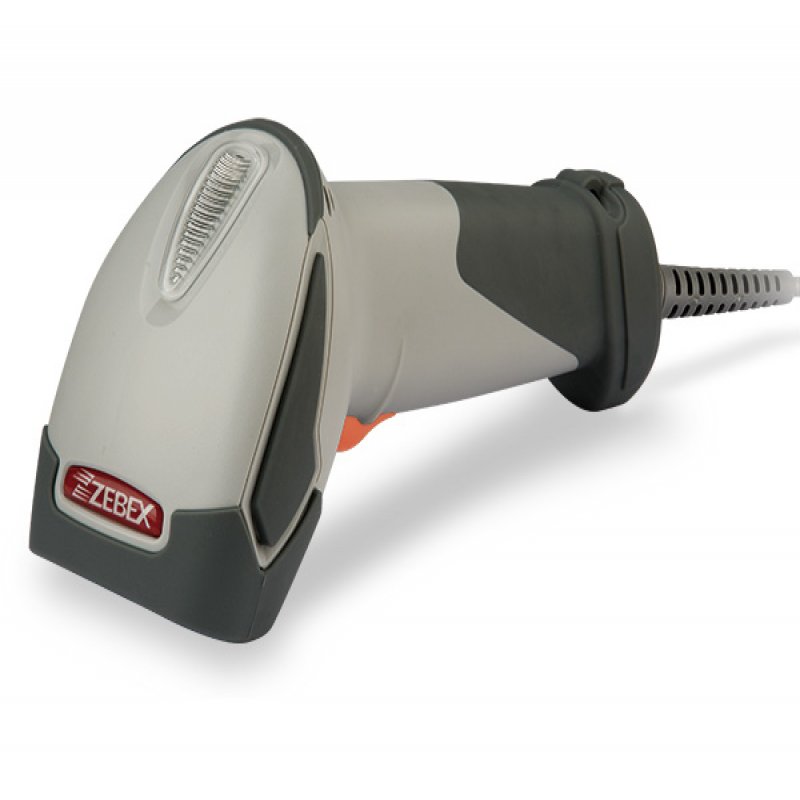

Defy harsh environment with the new gun-type laser scanner. Featuring elastic rubber protection and durable large size trigger users can operate the scanner with comfort and protection, even during prolonged periods of use. Embedded with ZEBEX’ most advanced decoding technology, Z-3191LE decodes at 75 scans per second and is able to recognize most of the 1D barcodes on the market including GS1 DataBar. Reliable and proven to maintain performance through cruel conditions, it is designed for users requiring sharp scanning performance and industrious applications.

• 32-bit proprietary Ultrascan decoding technology
• GS1 DataBar decoding capability
• Auto Gain Control
• Synthetic rubber handle for operation comfort and durability





ขนาด
147.0 × 62.0 × 114.5 mm (device only)
น้ำหนัก
140 g (device only)
Interface Cable
Field replaceable, standard 2M straight
Light Source
650 nm visible laser diode (VLD)
Microprocessor 32 bit
Depth of Field 4 mil: 0 –10 mm
5 mil: 20 – 80 mm
7.5 mil: 10 – 200 mm
10 mil: 10 – 230 mm
13 mil: 30 – 250 mm
20 mil: 50 – 380 mm
Note: DOF may vary depending on environment condition and barcode quality.
Scan Rate 100 scans per second
Scan Angle 38°
Print Contrast 45% @ UPC/EAN 100%
Indicator  Beeper and LED
Programmable Operation Beeper tone & volume
System Interface Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
Input Voltage  5 VDC ± 10%
Power Consumption  0.9 watts
Operating Current  Max. 180 mA
Stand-by Current 65 mA
EMC CE & FCC DOC compliant, VCCI, BSMI
Safety IEC 60825-1 Class 2
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -10°C – 70°C (14°F – 158°F)
Humidity 5% – 95% RH (non-condensing)
Light Level Max. 4,500 Lux (fluorescence)
Drop Durability Designed to withstand 1.2M drops
1D Barcode UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen
