PM80ID

PM80ID

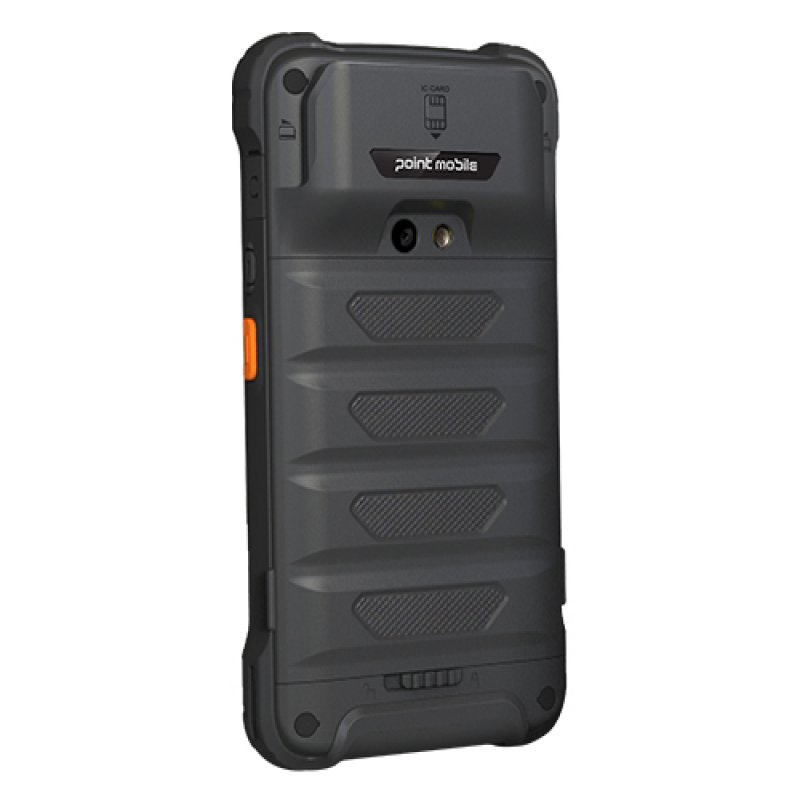

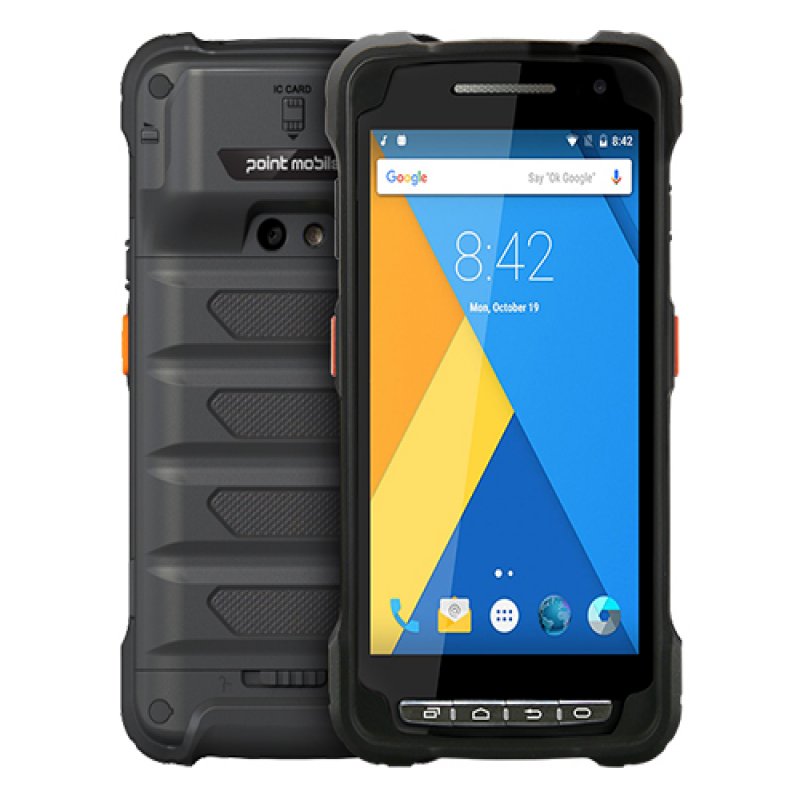

PM80ID is 5 inch screen full touch mobile terminal with Qualcomm up to 1.4 GHz Quad core, IEEE 802.11 a/b/g/n, optional 2D imager, Bluetooth v4.0. This stylish mobile terminal can stand up to 1.2m (4ft) along with IP67 water and dust protection.

Powerful Qualcomm Snapdragon will free your work
Qualcomm's Snapdragon MSM8916 processor is a market-proven AP(Application Processor) which has Quad-Core with 1.4GHz clock speed. It is truly SoC(System on a Chip) having 4G LTE, Wireless LAN, Bluetooth, S-GPS and Camera bus interface.

Google Android 5.0 & Microsoft Windows 10 IoT Enterprise are the heart of system
PM80ID runs on Google's latest Android 5.0 Lollipop Operating System and it is certified by Google Mobile Services (GMS) to support all Google official API including Google Play. Now, New Windows 10 IoT is released and available. You can choose and enjoy Win 10 with best selling product, PM80ID.

Wider & Brighter IPS display provides better visibility
PM80ID adopts 5.0" IPS panel TFT-LCD with capacitive touch screen and it supports wide-viewing angle and dayllight redability in order to maximize the best performance in the out-field. To support harsh environment, top of screen is protected Corning Gorilla Glass 3 for maximum durability.

Frequently using 4 "HARD" keys towards field-work-forces
Most of Enterprise EDA in the market adopts capacitive-based touch button even for the most frequently used Recent App, Home, Back button. Not every user prefer to use Stylus pen in the field, PM80ID features with 4 hard keys : Home, Menu, Back button and plus user-programmable / assignable key, which is very essential forious field applications.

Powerful Wireless; 4G LTE & IEEE 802.11 a/b/g/n and versatile data-input funtions; 1D/2D, NFC, MSR & ICCR
As of Enteprise mobility purposes, PM80ID is completely tuned for Enterprise work-forces; smooth hand-over between WWAN and WLAN each other, seamless roaming among many routers & access points in the harsh working environment, because Enterprise users prior seamless connectiv-ity to speed. Also, to provide various data input functions up on various customers' need, PM80PAY is built-in with latest 1D/2D imaging barcode scanner, NFC HF RFID 13.56MHz & encrypted 3-track Magnetic Stripe Reader. 3-track Magnetic Stripe Reader as well as Level 1&2 certified IC Card Reader integrated. Especially, MSR is an optional feature and it is free from any possible counterfeit and unauthorized data access thanks to Point Mobile's data encryption technology. PM80ID is truly hybrid because shape & design is following commercial smartphones but features are truly towards Enterprise users.

Physical characteristics
Dimensions:
156 x 82 x 22mm / 6.1x3.2x0.9 in (With MSR)
Weight:
293g / 10oz(With MSR) including battery

Environmental
Operating: -20°C to 60°C (-4°F to 140°F)
Storage: -40°C to 70°C (-40°F to 158°F)
Relative Humidity: Non-condensing, 95%
Rain & Dust Proof: IP67
Drop: 1.5m (5 ft) per MIL-STD 810G
at all operating temperature
Tumble: 500cycle (1000hit) @ 1m (3.3ft)
ESD: 15 kV air, 8 kV contact

Power
Standard Battery: 3,000mAh Li-ion rechargeable
Extended Battery: 4,000mAh Li-ion rechargeable

Operating System
Google Android 5.0 Lollipop
(CTS & GMS is certified)

Micro-Processor
Qualcomm MSM8916 1.4GHz Quad-core

Memory and Storage
RAM: 1GB / 2GB
ROM: 8GB / 16GB
NAND Flash User-accessible
micro-SD cards up to 32GB SDHC

Display
5.0 in, IPS panel, 720 x 1280 pixel (HD)
Corning Gorilla Glass 3, Daylight readable,
Wideviewing angle, Capacitive touch, Anti-raindrop

Standard Communications
Full speed USB 2.0 from either cradle or
USB direct sync cable

Camera
8.0MP(Rear) with LED flash and 2.0MP(Front)

Keypad Options
4 physical keys (Recent Apps, Home, Back &
Programmable)

Sensors
Gyroscope, Accelerometer, Light Sensor &
Proximity Sensor.

Global Positioning System
12 channel integrated GPS: assisted via
WAN carrier: accuracy within 3m, Stand-alone
GPS available support glonass

Wireless WAN
EDGE/GPRS/GSM:850/900/1800/1900
WCDMA: 850/900/1900/1700/2100 MHz
LTE: FDD2, FDD3, FDD4, FDD5, FDD13, FDD17










Wireless LAN
IEEE 802.11 a/b/g/n Data rates: up to 150 Mbps
Operating channels: 1 to 13 (2.4Ghz & 5Ghz),
36 to 165(5GHz), CCX v4
Regulatory compliance: As per IEEE 802.11n
Security: WEP / WPA / WPA2 and more
Authentication: PEAP/MS-CHAPv2, EAP-TLS

Wireless PAN
Integrated Bluetooth Class II, Ver.4.0
Operating channels: 0 to 78 (2402-2480 Mhz)
Data Rates: 1, 2, 3 Mbps

NFC (Near Field Communcation)
P2P NFC with 1 SAM slot (13.56Mhz HF RFID)
Supported Tag-Ics : MIFARE® 1k/4k/Plus,
MIFARE UltraLight, MIFARE UltraLight C,
MIFARE DESFire, MIFARE DESFire EV1,

ISO 14443 A & B

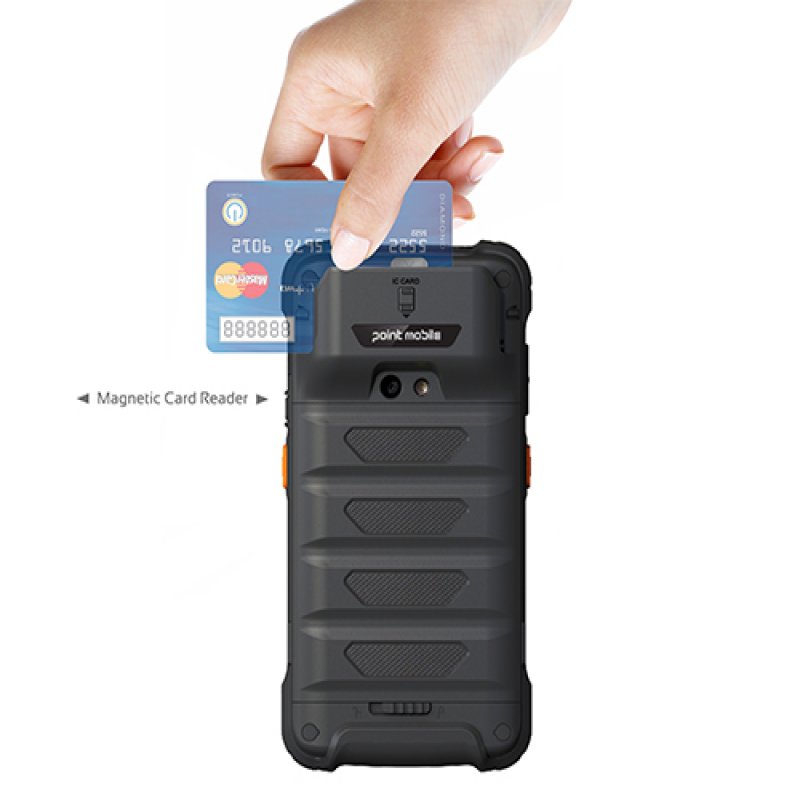

Magnetic Stripe Reader
3 track MSR with water proof sealed.
ANSI / ISO7813 standard, Encrypted

IC Card Reader
Level 1 & Level 2 certified
ISO7816-1/-2/-3/-4 fully compatible
(Debit & credit card payment accetable in case of
No PIN required transaction)

Integrated Barcode Reader
1D/2D Imager : supporting all 1D/2D standard
Symbology including GS1 Databar

LED Indicator and Scan Alert
Indicator: 2 x dual color LEDs on front:
1) Power, 2)Warning, 3)Scan reading
Scan Alert: Vibration

Audio Support
Supports VoIP, Built-in two microphone (Noisecancelling),
speaker, receiver and headset jack (3.5mm),
Wireless Bluetooth headset support

Accessories
Standard accessories: AC/DC power adaptor &
country plug, Stylus pen & tether, Wrist Landyard,
Battery, LCD protection film
Optional accessories: Single-slot cradle, 4-slot Cradle,
Extended battery, 4-slot Battery Charger,
I/O sync USB Cable, Vehicle mount charging cradle,
Cigar jack charger

Regulatory Approvals and Compliance
Certificated CE & GCF, ,FCC & PTCRB,IC,
CCC & SRRC & NAL ,KC, TELEC & JATE, CB,RCM
Environmental: RoHS II & WEEE compliant



STANDARD ACCESSORIES
: AC/DC Power Adaptor, Standard Battery, Stylus pen and tether, Wrist Strap, LCD protection film
  • AC/DC Power Adaptor
  • img_acc_pm80_STD.jpg
    Standard Battery
  • Stylus pen and tether
  • Wrist landyard.jpg
    Wrist landyard
  • LCD protection film_PM80.jpg
    LCD protection film

OPTIONAL ACCESSORIES
: I/O sync USB Cable, Extended Battery, Single-slot Cradle, 4-slot Battery Charger, 4-slot Cradle, Vehicle mount, Cigar jack charger
  • PM80_IO sync_100x80.jpg
    I/O sync USB Cable
  • img_acc_pm80_EXT.jpg
    Extended Battery
  • Single-slot Cradle
  • PM80_4SBC_100x80.jpg
    4-slot Battery Charger
  • 4-slot Cradle
  • PM80_Vehicle mount_100x80.jpg
    Vehicle mount

  • Cigar jack charger
