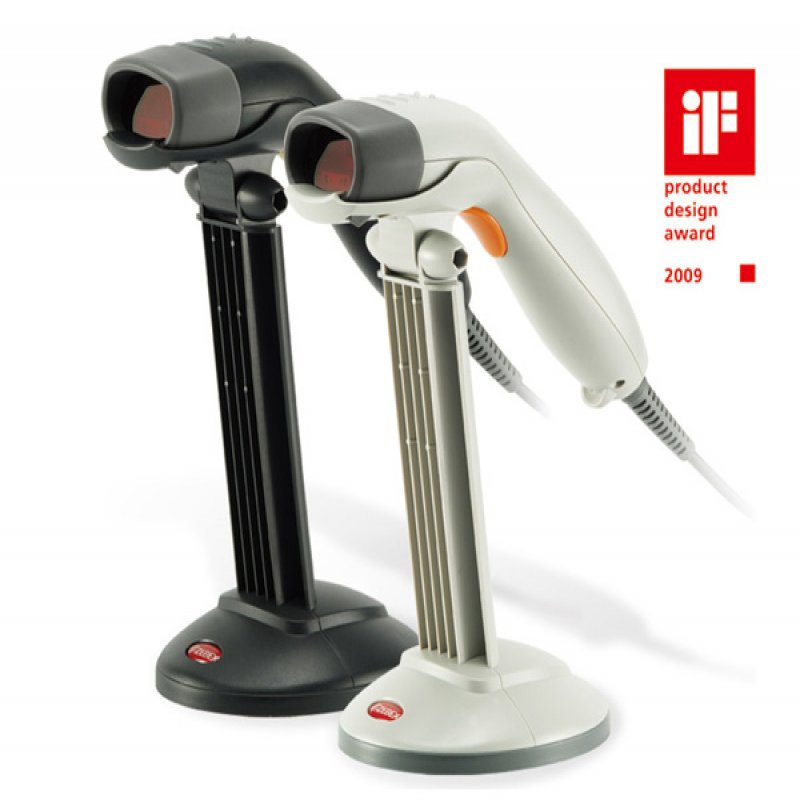

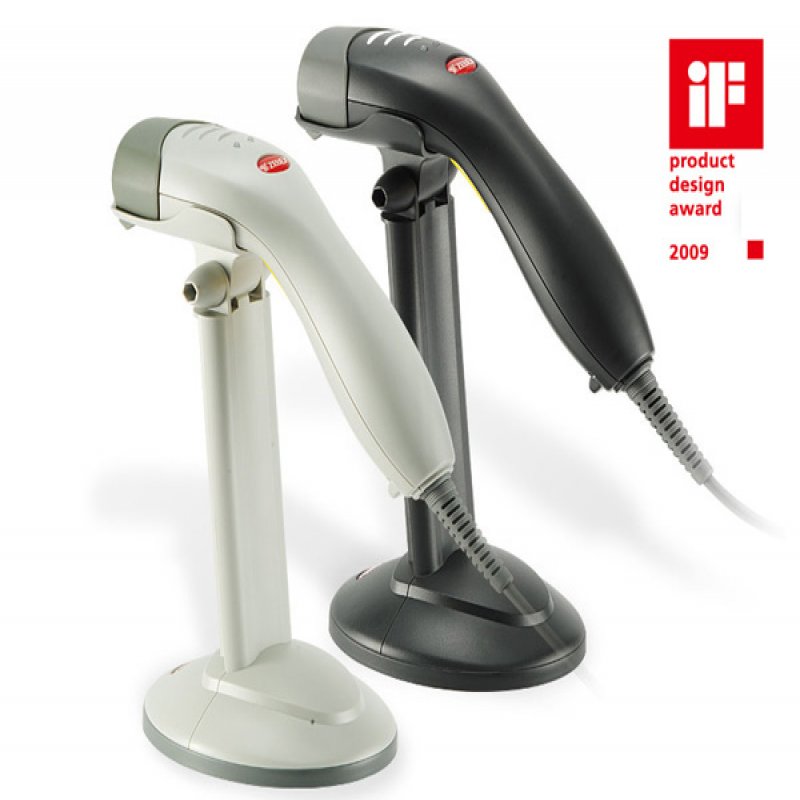

ZEBEX Z-3151HS

เครื่องอ่านบาร์โค้ด ZEBEX Z-3151HS

The Z-3151HS is a high class handheld single-line laser scanner with a powerful scan engine. It utilized the omnidirectional technology to transform seven laser lines into one and performs a superb scanning speed at 500 scans per second. The built-in Z-SCAN+ decoding technology guarantees real-time scanning and accuracy, ensuring an unbeatable first read success rate. The 32-bit MPU allows it to read most 1D barcode types, GS1 DataBar and PDF417.

• Decode most 1D barcodes, incl. GS1 DataBar & PDF 417
• Superb scanning ability
• Proprietary Z-SCAN+ technology

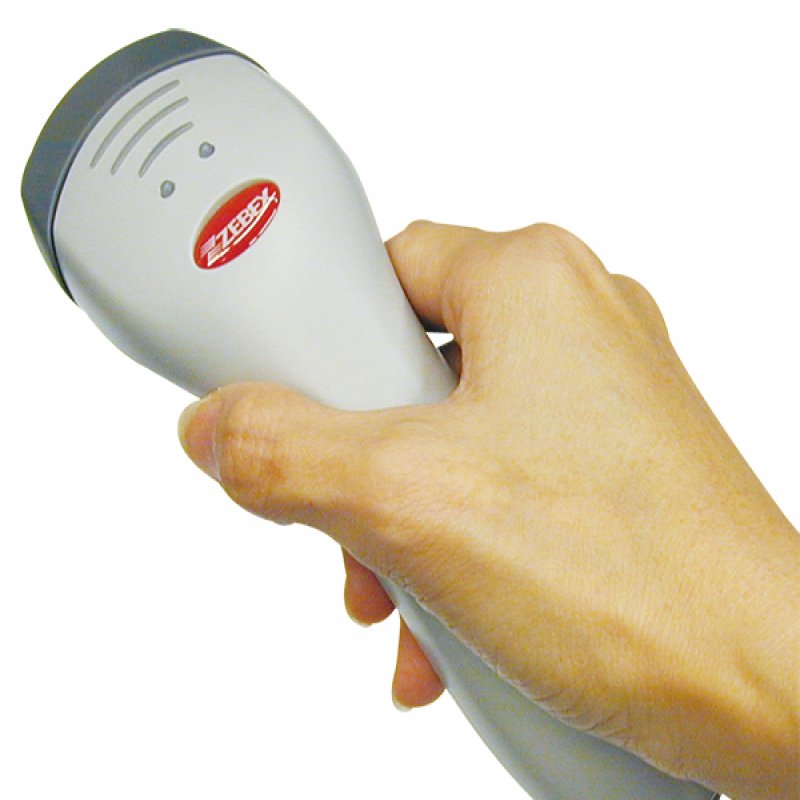

• Rugged and ergonomic form factor
• Flexible communications
• Honored by iF Product Design Award 2009





size
107.8 × 58.3 × 155.2 mm (device only)
weight
130 g (stand excluded)
Cable
Standard 2M straight
Light Source
650nm visible laser diode (VLD)
Microprocessor 32 bit
Depth of Field 4 mil: 0 –10 mm
5 mil: 20 – 80 mm
7.5 mil: 10 – 200 mm
10 mil: 10 – 230 mm
13 mil: 30 – 250 mm
20 mil: 50 – 380 mm
Note: DOF may vary depending on environment condition and barcode quality.
Scan Angle 52°
Scan Rate 500 scans per second
Pitch/Roll/Skew Angle 65° / 30° / 65°
Print Contrast 30% @ UPC/EAN 100%

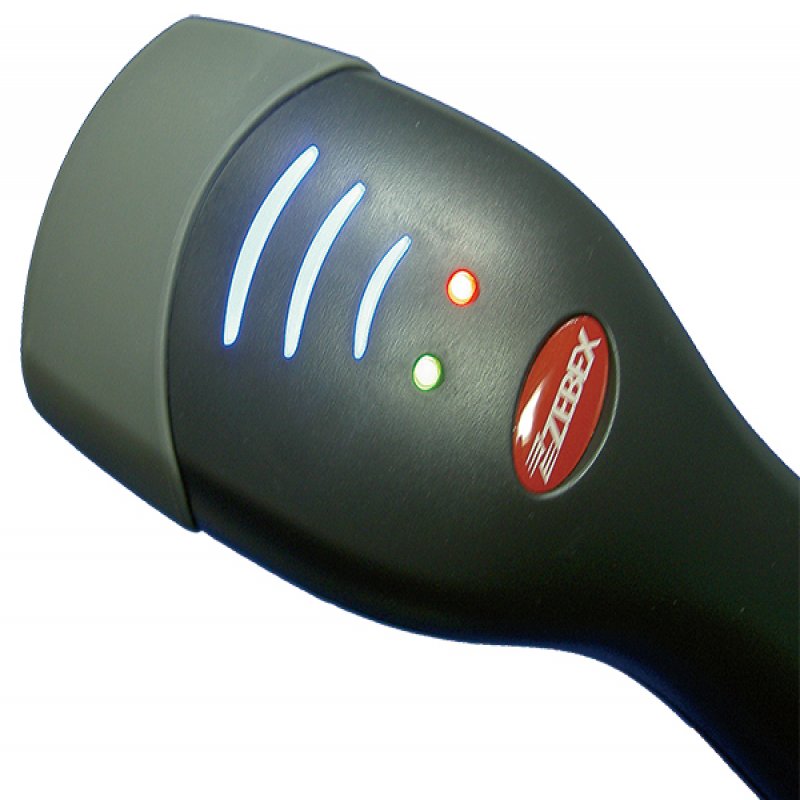

Indicator Three-color LED (green, red & blue)
Beeper Operation Programmable tone & beep time
System Interface Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
Input Voltage 5 VDC ±10%
Operating Curren 250 mA
Power Consumption 1.25 watts
EMC CE & FCC DOC compliant, VCCI, BSMI
Laser Class CDRH Class IIa; IEC 60825-1: Class 2
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Humidity 5% – 95% RH (non-condensing)
Light Level 4, 500 Lux (fluorescence)
Drop Durability Designed to withstand 1M drops
1D Barcode UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen
2D Barcode PDF417
